18-meter Channel Sounding test with Nordic nRF54L15 SoC

Share：

[TAIWAN, 21th Jan. 2025]

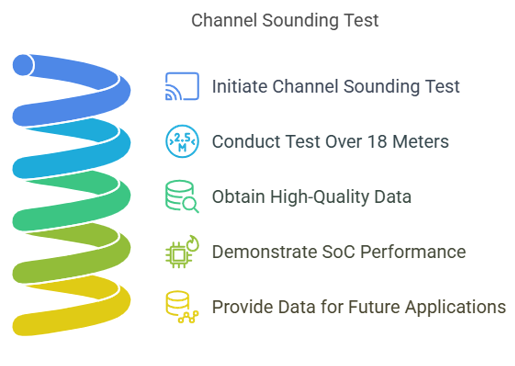

Arad Connectivity recently completed an 18-meter Channel Sounding test using the two Nordic nRF54L15 evaluation boards. This test demonstrated the exceptional performance of the nRF54L15 SoC and provided valuable data for future wireless communication applications.

Channel Sounding is a technique used to evaluate the characteristics of a wireless channel, providing detailed data on signal transmission quality, interference, and channel response. This information is crucial for optimizing the performance of wireless communication systems. In this test, Arad Connectivity used the nRF54L15 evaluation board to conduct precise Channel Sounding over 18 meters, obtaining high-quality data.

ALL_news_25A21_lYXfDWQco5

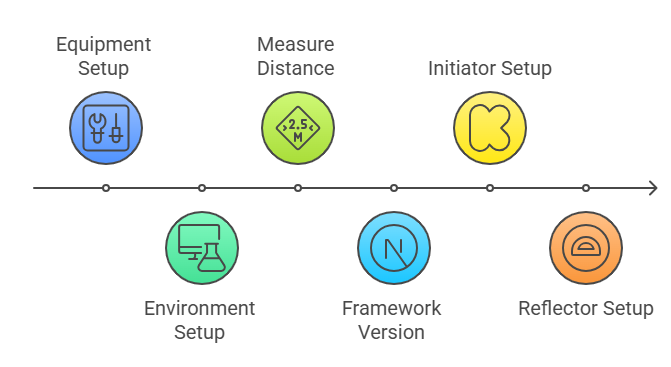

The specific steps involved in this Channel Sounding test are as follows:

Preparation:

Equipment Setup: Ensure all testing equipment, including the Nordic nRF54L15 evaluation board, antennas, power supplies, and testing software, are ready.

- Framework version: NCS V.2.9.0/zephyr/channel sounding
- Initiator: Nordic nRF54L15 evaluation board
- Reflector: Nordic nRF54L15 evaluation board

Environment Setup: Choose a suitable testing environment, ensuring minimal interference sources, and measure the testing distance (18 meters in this case).

ALL_news_25A21_VHcWbouRhp

Configuration:

Board Configuration: Flashed the SDK NCS V.2.9.0/zephyr with error-free to configure the nRF54L15 evaluation board.

Channel Configuration: Set up the testing channel, ensuring the transmitting and receiving devices operate on the same frequency and channel.

Testing:

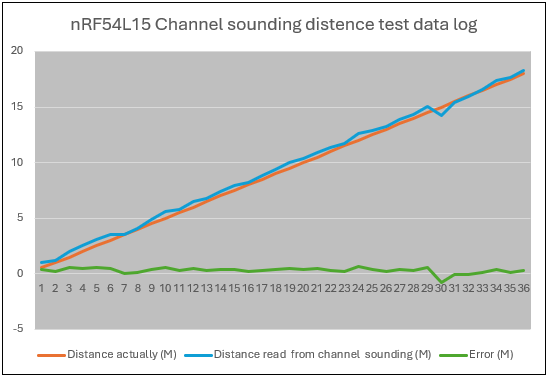

Leverages Bluetooth Channel Sounding Phase-based Ranging (PBR) and Round-Trip Time (RTT) to establish communication between the Initiator and the Reflector. The measured distance data is read by the LightBlue application.

Data Analysis:

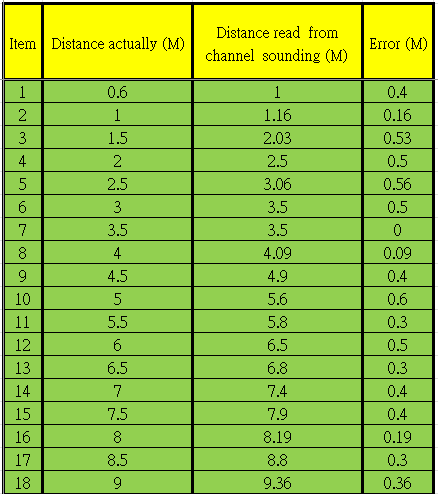

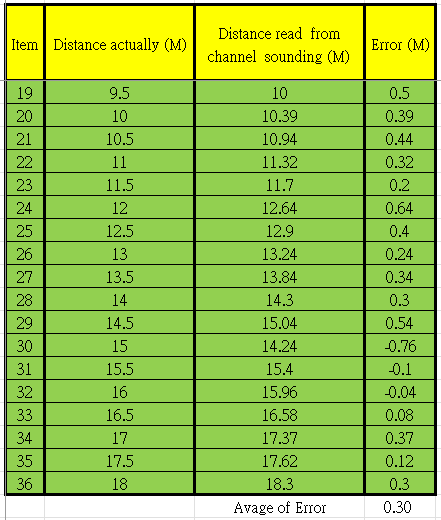

Data Collection: Import the received signal data into analysis software for initial processing and organization.

ALL_news_25A21_SCTDJRBA9A

ALL_news_25A21_Cgp5VUx28J

ALL_news_25A21_wykNGHi27h

Conclusion

Arad Connectivity’s success is confirmed that the Channel Sounding application can effectively perform distance measurement. For more information about our Bluetooth wireless module and other products, please visit our website or contact us.

Please email to Arad-Connectivity@aradconn.com

Edited by Intl. Commercial Development Manager: Mr. Tim Chien
