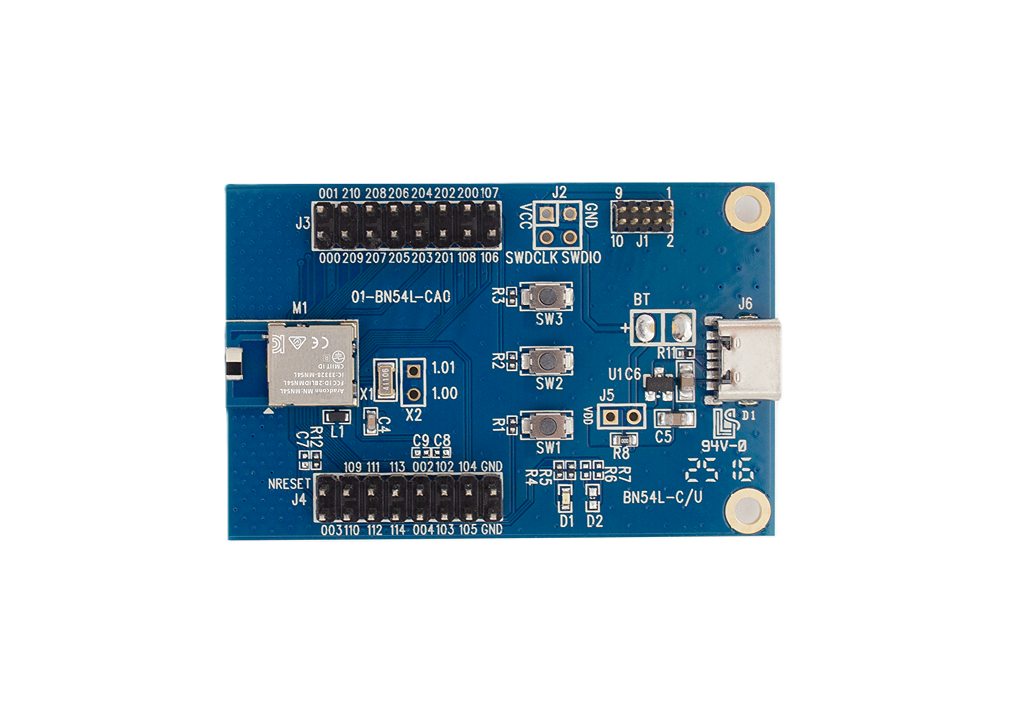

MN54L-C15-DB (BN54L-C15)

■ Nordic Semiconductor nRF54L15 module
■ Arm Cortex-M33 processor 128 MHz
■ Built-in 1.5 MB non-volatile memory and 256 KB RAM
■ Supports Bluetooth 5.4, ANT, Matter, Thread, Zigbee, IEEE 802.15.4, and proprietary 2.4GHz RF protocol software
■ Higher throughput PHY 4Mbps, 2Mbps, 1Mbps, Long Range 125kbps, Bluetooth® low energy mode
■ Peripherals, full-area RTC, 14-bit ADC, and software-defined peripherals enabled by RISC-V co-processor
■ Designed for PSA-certified Level 3 IoT security standards and physical security
■ TrustZone isolation, side channel protection, and tamper detection
■ Low-power Bluetooth module with integrated CHIP antenna
■ Operating system, Nordic nRF Connect SDK / Zephyr RTOS
■ Communication Range 550 meters (line of sight)
■ Form Factor 9.3 x 14.5 x 2.1mm / Small package

COMMUNICATION PROTOCOL

BT6.0 Channel Sounding
BT5.4 PAwR
Bluetooth Mesh
2.4 GHz
NFC
ANT+
Bluetooth
Zigbee
Matter
Thread
