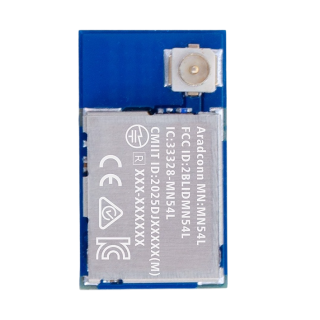

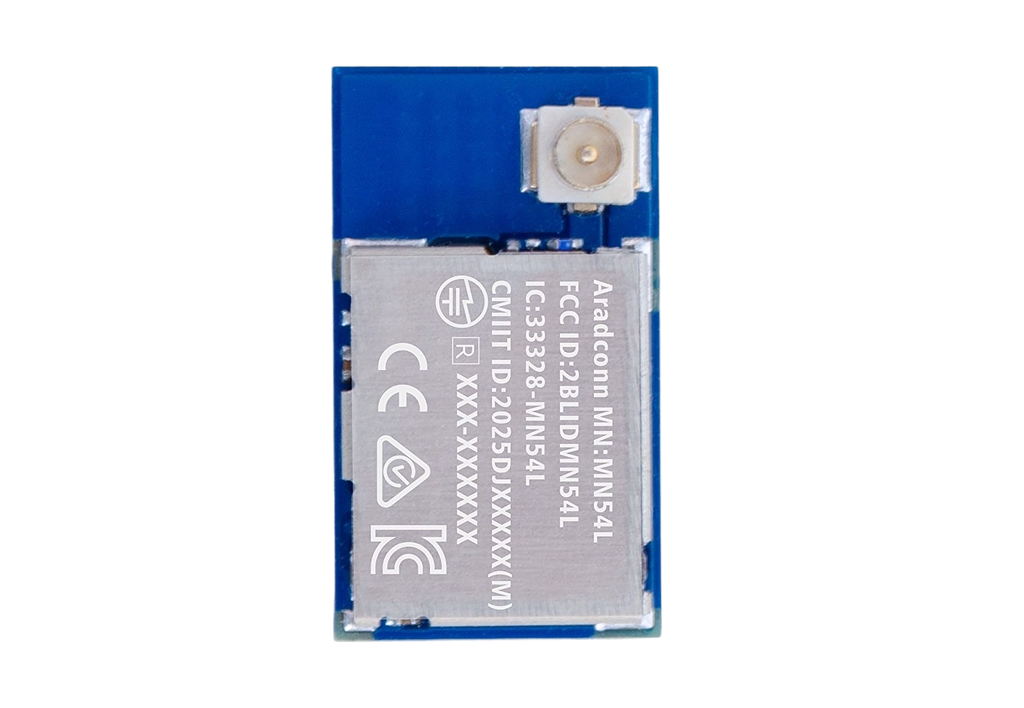

MN54L-U15
■ Arm Cortex-M33 processor 128 MHz
■ Built-in 1.5 MB non-volatile memory and 256 KB RAM
■ Supports Bluetooth 5.4, ANT, Matter, Thread, Zigbee, IEEE 802.15.4, and proprietary 2.4GHz RF protocol software
■ Higher throughput PHY 4Mbps, 2Mbps, 1Mbps, Long Range 125kbps, Bluetooth® low energy mode
■ Peripherals, full-area RTC, 14-bit ADC, and software-defined peripherals enabled by RISC-V co-processor
■ Designed for PSA-certified Level 3 IoT security standards and physical security
■ TrustZone isolation, side channel protection, and tamper detection
■ Low-power Bluetooth module with integrated CHIP antenna
■ Operating system, Nordic nRF Connect SDK / Zephyr RTOS
■ Wireless RF distance 750 meters (line of sight)
■ Form Factor 9.3 x 14.5 x 2.1mm / Small package
MN54L series modules are built on Nordic Semiconductor's newest series of IC nRF54L chips to create a new generation of low-power Bluetooth modules, the new 22nm microprocessor processor, built-in Multiple Arm Cortex-M33 processors, clocked up to 320 MHz and Multiple RISC-V coprocessors, to provide customers with a better experience for new product development, this new generation of solution modules have your familiar development tools and packages, and new definitions of new products. Multiple RISC-V coprocessors, to provide customers with a better experience in new product development, this new generation of solution module has your familiar development tools and packages, and a newly defined Bluetooth LE protocol.
Unlike the previous 52 series solutions, the MN54L features an increased processor MCU performance up to 128 MHz with dual processors running concurrently, upgraded to 1.5MB of non-volatile memory and 256KB of RAM, and a microprocessor that can be edited with the Nordic SDK and Nordic Zephyr RTOS code to allow developers to do more software application setups. Software application setup. 1.7V-3.6V low power performance, FOTA online updates, built-in NFC-A Tag, and 32 GPIO flexibility.
The MN54L series is equipped with state-of-the-art security features and professional PSA security certification, supporting secure boot-up and secure firmware updates. Secure storage and integrated anti-skimming programs provide end-user products with more efficient physical security protection.
For our module products, we have adopted the new generation of R&D technology to reduce the module size to the best economic size. The module optimizes the RF signal to the best condition, both in terms of the RF wave coverage and the measured distance. MN54L will provide a different performance experience.
