Arad Connectivity MN54LM-20A BLE Bluetooth Module Smartphone Connection Full-Axis Test Report (1M PHY)

[TAIWAN, 29^th July 2026]

Introduction

Compared to the MN54L-15 series modules (9.3x14.5x2.1mm), the MN54LM-20A modules feature a more compact size (7.5x13x2.0mm), with the MN54LM-S20A module being the smallest at (7.5x10.2x2mm). This test aims to explore "what is the impact of size reduction on the effective connection range of the modules?", thoroughly verify the maximum effective communication range of the Arad Connectivity MN54LM-20A series BLE modules when communicating with an iPhone 7 smartphone under 1M PHY, and evaluate the communication performance across all axes for modules equipped with built-in CHIP, PCB antennas, and external u.FL antenna versions.

1. Test Objectives

✅ To completely verify the maximum effective communication range of the MN54LM-20A BLE series modules when communicating with an iPhone 7 smartphone under 1M PHY

✅ To test the communication performance of built-in CHIP, PCB antennas, and external u.FL antenna version modules across all axes with the smartphone.

2. Test Date & Environment

3. Equipment Required

4. Test Parameters

5. Test Procedure - iPhone 7 (MASTER, 0 dBm)

5.1 Preparation and Connection Establishment

1.     Equipment Setup: Establish an active connection between the iPhone 7 and SLAVE devices (MN54LM-C20A, MN54LM-P20A, MN54LM-U20A, MN54LM-S20A), and verify packet reception.

2.     Transmission Rate: Set to 1M mode, transmitting 4 packets per second.

3.     Starting Point Positioning: Fix the SLAVE device at the starting point, 3 meters above the ground, ensuring all antenna directions face the intended movement path.

4.     Connection Check: Observe the LightBlue® screen to confirm connection status.

5.2 Distance Measurement and Data Logging

1. Incremental Test: The MASTER device (iPhone 7) moves outward along the line-of-sight distance path in 10-meter increments.  Stop and Monitor: At each measurement point, check connection quality via the LightBlue® screen.

2. Limit Distance Determination: Continue moving until the connection can no longer be stably maintained (e.g., success rate remains persistently low or LightBlue® connection completely drops, at which point indicator lights stop flashing).

3. Use Google Maps and GPS tools to precisely record the disconnection distance and environmental characteristics at the time of disconnection.

6. Test Records (Maximum Effective Connection Distance)

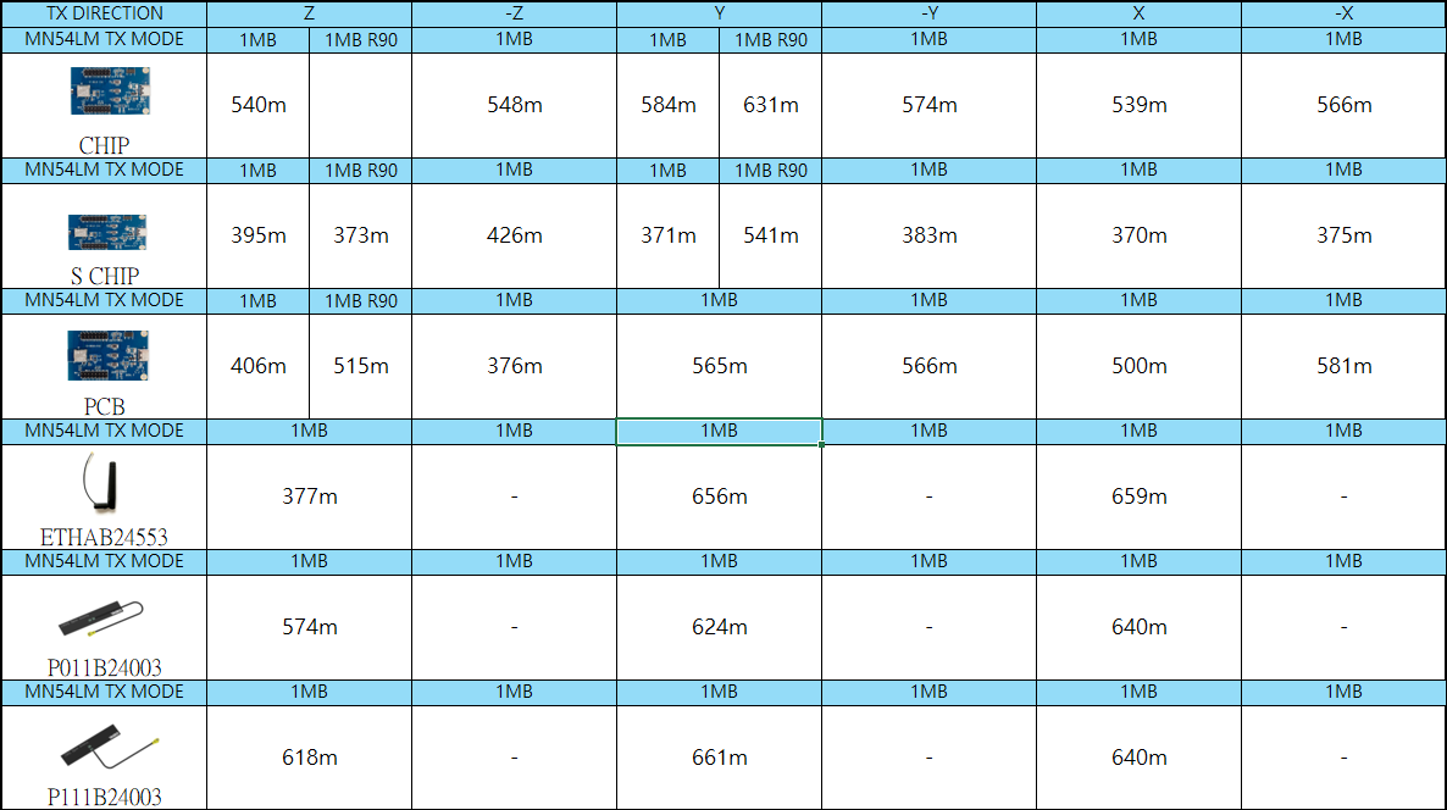

The table below shows the maximum effective distance at which the MN54LM-20A series modules maintained a stable bidirectional connection and received at least one packet over long ranges:

MN54LM-C20A Maximum Range Positioning Map (All Axes)

Note: The aerial view is not a photo of the actual site.

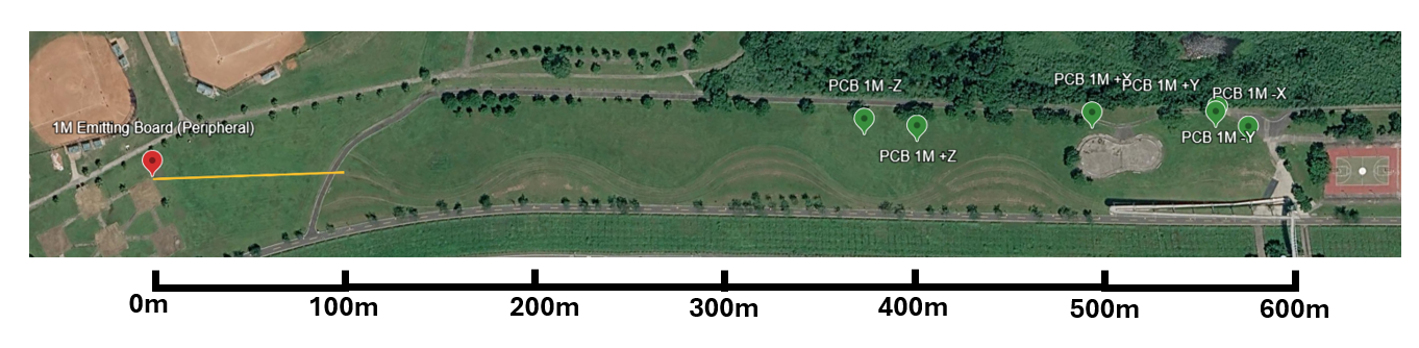

MN54LM-P20A Maximum Range Positioning Map (All Axes)

Note: The aerial view is not a photo of the actual site.

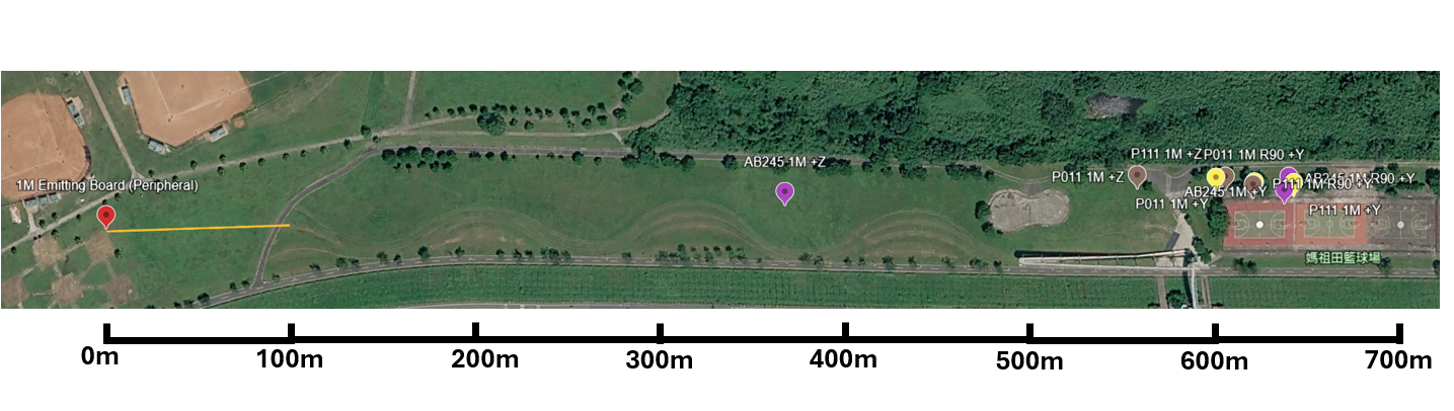

MN54LM-U20A Maximum Range Positioning Map (All Axes)

Note: The aerial view is not a photo of the actual site.

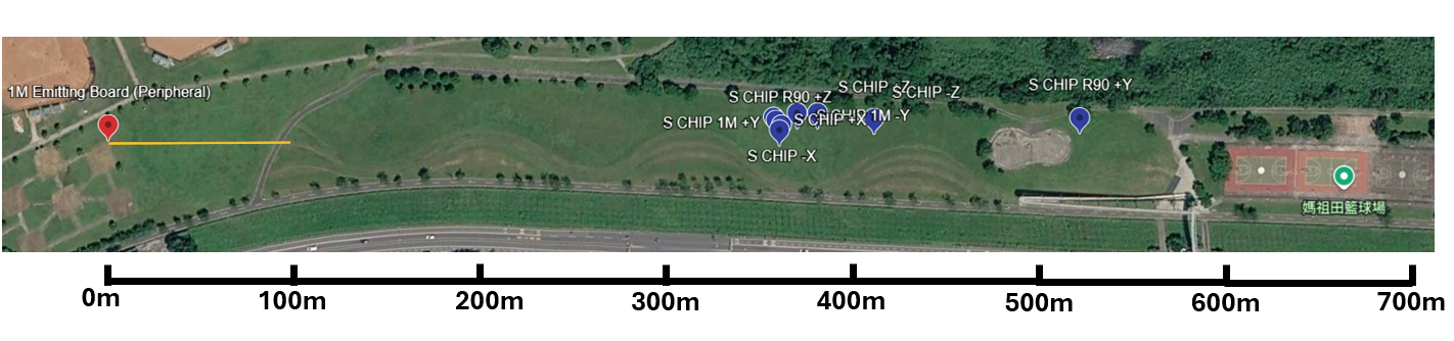

MN54LM-S20A Maximum Range Positioning Map (All Axes)

NOTE: THE AERIAL VIEW IS NOT A PHOTO OF THE ACTUAL SITE.

Test Conclusions

Synthesizing the field test data from open-field conditions, as the MN54LM-20A series modules feature reduced physical dimensions (especially the ultra-compact MN54LM-S20A), their overall wireless transmission distances are indeed impacted to varying degrees. However, through cross-validation across all axes and rotation angles, several key conclusions can be drawn:

1. Trade-off Between Size and Performance: The reduction in physical volume directly impacts the radiation efficiency of the built-in antennas. The miniaturized S CHIP (MN54LM-S20A) sees its communication range drop to the 370–541 meter range across axes, whereas standard-size CHIP and PCB variants maintain ranges between 400 and 660 meters.
2. Antenna Directivity and Rotational Optimization: Physical placement and rotation angles (such as R90°) significantly impact the transmission distance for specific antennas (like CHIP and PCB antennas). Proper rotation and directional alignment (e.g., CHIP antenna reaching 631–667 meters after Y-axis rotation) can effectively overcome directional performance constraints.
3. Advantages of External Antennas: For space-constrained applications requiring maximum transmission range, pairing with external u.FL antennas (such as P111B24003) significantly boosts performance, achieving stable connections up to 661 meters along specific axes—serving as an alternative solution to counteract range degradation caused by module miniaturization.
