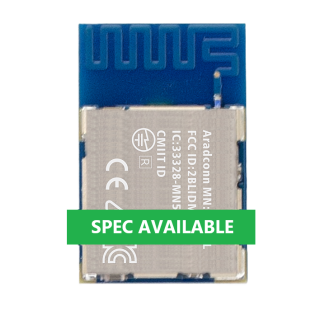

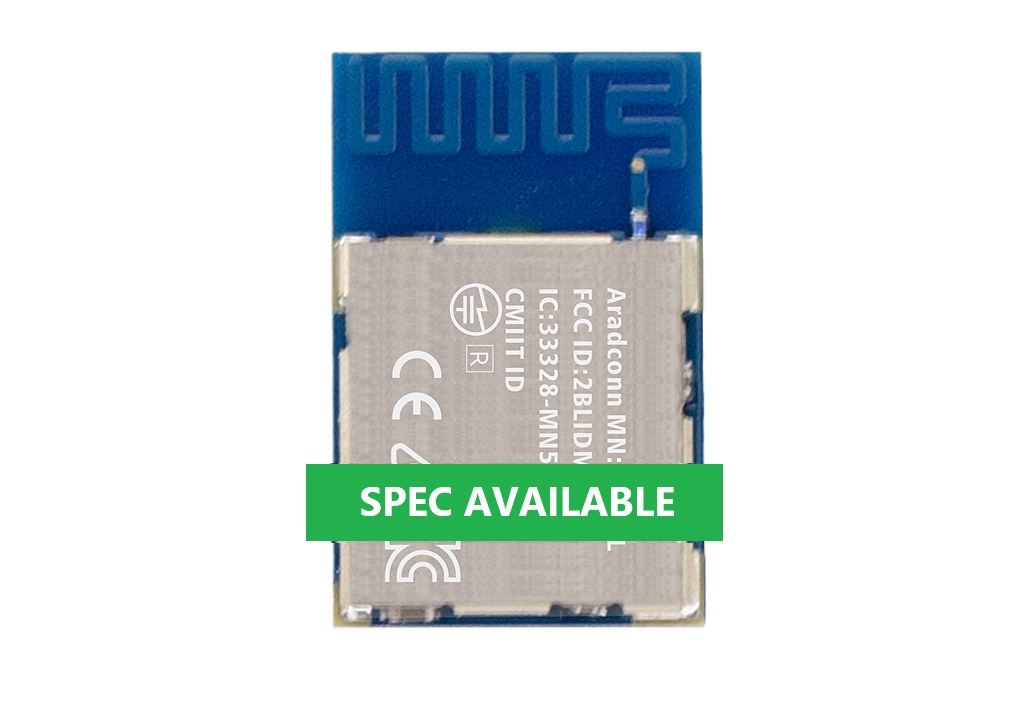

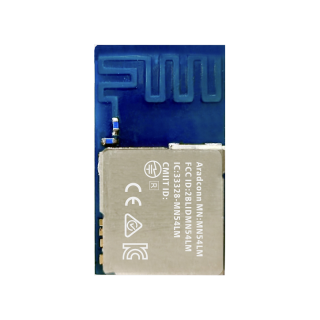

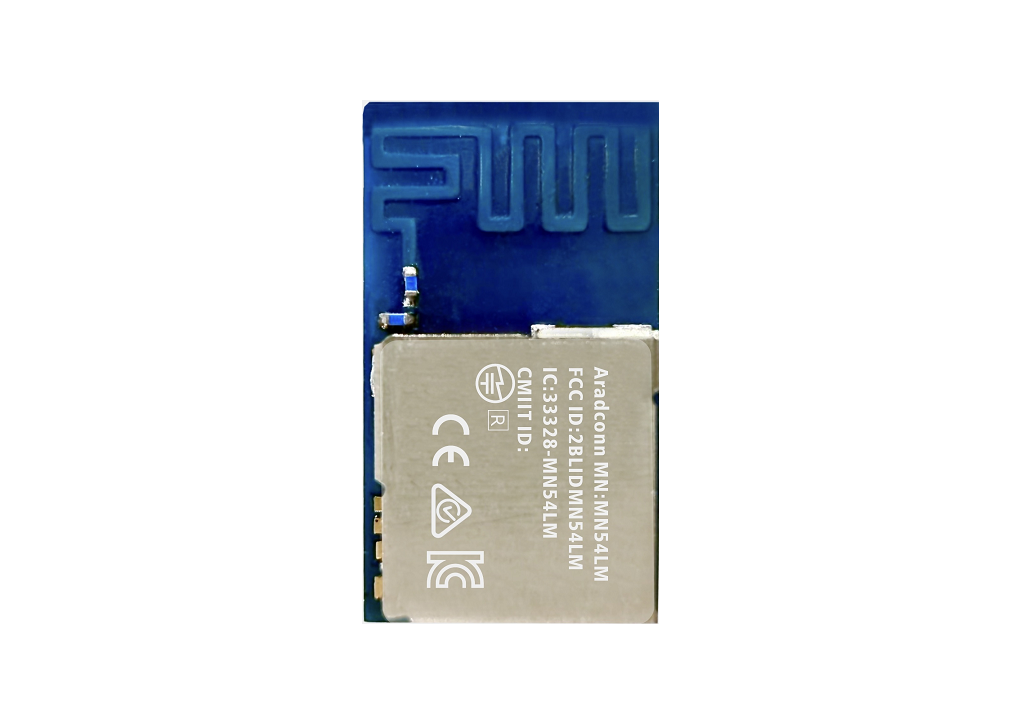

MN54LM-P20B
■ Arm Cortex-M33 processor 128 MHz
■ Integrated Axon NPU
■ Built-in 2.0 MB non-volatile memory and 512 KB RAM
■ Supports Bluetooth 6.0, ANT, Matter, Thread, Zigbee, IEEE 802.15.4, and proprietary 2.4GHz RF protocol software
■ Higher throughput PHY 4Mbps, 2Mbps, 1Mbps, Long Range 125kbps, Bluetooth® low energy mode
■ Peripherals: full-area RTC, 14-bit ADC, and software-defined peripherals enabled by RISC-V co-processor
■ Designed for PSA-certified Level 3 IoT security standards and physical security
■ TrustZone isolation, side channel protection, and tamper detection
■ Low-power Bluetooth module with integrated PCB antenna
■ Operating system, Nordic nRF Connect SDK / Zephyr RTOS
■ Communication Range with a Smart Phone 580 meters (line of sight)
■ Communication Range with a Module 2600 meters (line of sight)
■ TX power Up to 8 dBm
■ Form Factor 7.5 x 13 x 2.0mm / Small package
Ready for Design
The MN54LM-20B is an advanced wireless module based on the nRF54LM20B System-on-Chip (SoC). As the most capable member of the nRF54L Series featuring high memory and an integrated Neural Processing Unit (NPU), the module is designed to meet demanding requirements for memory, edge AI processing performance, and ultra-low power consumption in advanced connected devices.
Core Processing, NPU, and Memory
-
Integrates a 128 MHz Arm® Cortex®-M33 application processor.
-
Features an integrated Axon NPU (Neural Processing Unit), delivering powerful hardware acceleration for edge AI workloads such as sound classification, keyword spotting, and anomaly detection with up to 15x higher efficiency and speed compared to CPU execution.
-
Features a built-in 128 MHz RISC-V co-processor to handle real-time or low-level custom protocols.
-
Equipped with 2 MB Non-Volatile Memory (NVM) and 512 KB RAM—the largest memory option in the nRF54L Series—sufficient to run complex applications, edge AI models, and concurrent wireless protocol stacks (such as Matter, Bluetooth Mesh, and Thread) without external memory.
Wireless Communication and RF Technology
-
Utilizes Nordic's fourth-generation ultra-low-power 2.4 GHz multiprotocol radio.
-
Supports Bluetooth LE (including Channel Sounding introduced in Bluetooth 6.0), Thread, Matter, Zigbee, Bluetooth Mesh, and proprietary 2.4 GHz protocols with data rates up to 4 Mbps.
Advanced Process and Power Efficiency
-
Built on TSMC's 22ULL® (22nm) process technology, achieving significant breakthroughs in power consumption and energy efficiency.
-
Features a new Global Real-Time Clock (Global RTC) peripheral capable of operating in deep sleep modes to significantly reduce power consumption in long-sleep applications.
Top-Tier Security
-
Includes best-in-class security capabilities, such as TrustZone® hardware isolation, secure boot, secure firmware update, secure storage, a cryptographic accelerator with side-channel leakage protection, and tamper detectors.
Peripherals and Interfaces
-
Supports High-Speed USB for fast data transfer and firmware updates.
-
Offers an extended set of peripherals with up to 30 GPIOs supporting flexible interface configurations.
.
Please refer to the official website of Nordic Semiconductor for further information: LINK
